JACKS AND PLUGS
1/4" COMMERCIAL PHONE PLUGS PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

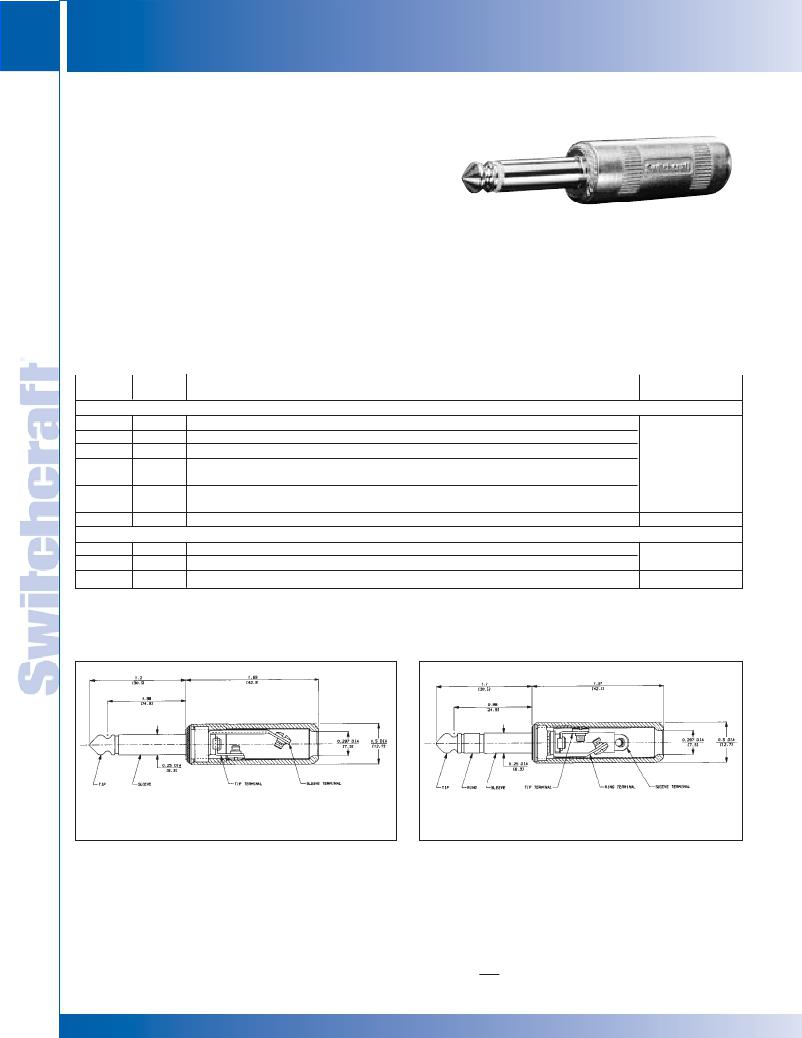

1/4" COMMERCIAL PHONE PLUGS (continued)
Switchcraft ? commercial 2- and 3-conductor phone plugs are
available with a logo handle in addition to the plain handle. The
Switchcraft ? name appears prominently on the shielded handle
so the plugs can no longer be easily confused with “copycat”
plugs found on the market today. Knurling on handles provides a
convenient, positive fingertip grip for connect and disconnect.
Plugs are available in the following popular variations:
1. 1/4" diameter finger, 2-conductors.
2. 1/4" diameter finger, 3-conductors.
3. .206" diameter finger, 2-conductors.
Plug handles accept cable up to .290" diameter.
PART NUMBERS
NOTE: Plugs have 1/4" finger diameter unless otherwise specified.
SPECIFICATIONS
Sleeve: Tip and Body: Plated copper alloy.
Terminals: Solder lug: Copper alloy, electro-tinned;
Screw: Tin-plated (screw size #3-48).
Handles: Nickel-plated zinc (tubular insulator inside handle).
Logo
Plain
Typical
Handle
Handle
Description
Mating Jack
2-CONDUCTORS
570 270
580 280
581 281
Screw terminals. Shielded handle.
Solder lug & cable clamp. Shielded handle.
Solder lug & cable clamp. Shielded handle. Unassembled.
585 285
Solder lug & cable clamp. Shielded handle. Unassembled. Larger cable clamp
accommodates larger cables.
11
588
288
Solder lug & cable clamp. Shielded handle. Wide insulator between tip and sleeve
makes possible use as a 2-conductor plug in 3-conductor jack without shorting.
S580 S280
3-CONDUCTORS
590 290
597 297
598 298
Solder lug & cable clamp. Shielded handle. Plug finger has .206" diameter.
Screw terminals. Shielded handle.
Solder lug & cable clamp. Shielded handle.
Solder lug & cable clamp. Shielded handle. Locking feature.
S11
12B
12B, 133
1. Other mating plugs are available.
2. Replacement screw, Part Number P10292 (2-conductor requires 2 screws; 3-conductor requires 3 screws).
No. 570 (Typical)
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
No. 590 (Typical)
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
